FXH FCM111 S-Grip PVC Drainage Mat is a flexible open-grid flooring roll designed for commercial wet areas, including swimming pool surroundings, locker rooms, washrooms and covered wet walkways. Its distinctive S-shaped structure allows water to pass through the mat while providing a textured walking surface.
Available in 1.2 m, 1.6 m and 1.8 m widths with a standard roll length of 15 m, FCM111 comes in four thicknesses and six colors. The roll material can be cut to suit different floor layouts, with an MOQ of 1,000 m² for wholesale and OEM orders.
FCM111
FXH
3.5mm / 4.5mm / 5.5mm / 6.5mm
120x1500cm / 160x1500cm / 180x1500cm
Red / Black / Grey / Green / Blue / Brown
1000 m²
FCM111 is an S-pattern PVC drainage mat roll featuring a flexible, open structure that allows water and loose debris to pass below the walking surface. Unlike solid PVC flooring rolls, its open-grid construction is designed for areas where drainage and regular cleaning are important.
Available in 3.5 mm, 4.5 mm, 5.5 mm and 6.5 mm thicknesses, the material can be supplied in standard rolls or cut into suitable lengths for commercial flooring projects. FXH supports wholesale supply and OEM customization according to project requirements.
| Item | Description |
|---|---|
| Product Name | S-Grip Mat |
| Brand | FXH |
| Material | PVC |
| Thickness | 3.5mm / 4.5mm / 5.5mm / 6.5mm |
| Size (by roll) | 120x1500cm / 160x1500cm / 180x1500cm |
| Color | Red / Black / Grey / Green / Blue / Brown |
| Application | Wash room ; Swimming pools ;Oily, greasy and work cells ;Bar and kitchen wet areas ;Food processing work cells |
| MOQ | 1000 m² |
| Form | Roll |
Made from flexible PVC, S-Grip drainage matting is designed for commercial wet areas. Multiple thickness options allow buyers to select suitable specifications for different flooring projects.
The distinctive hollow S-pattern allows water and loose debris to pass through the mat, helping reduce surface water accumulation in areas with suitable drainage.
The raised S-shaped surface provides a textured contact area for footwear. Its open construction makes the mat suitable for wet-area flooring applications.
Supplied in 15 m rolls with widths of 1.2 m, 1.6 m and 1.8 m, the PVC matting can be cut to fit different floor layouts and installation requirements.
Available in black, grey, green, red, blue and brown. Custom colors and roll specifications can be discussed for wholesale and OEM orders.
Premium PVC Material
Innovative S-Shaped Drainage Design
Fast Water Filtration
Easy to Cut
S-Grip PVC drainage mats are suitable for poolside walkways, locker rooms and other wet areas where water drainage and regular cleaning are important.
The open S-shaped structure allows water to pass through the mat, making it a practical flooring option for commercial washrooms and changing facilities.
Flexible PVC drainage rolls can be cut to fit behind beverage counters and service areas where occasional spills require regular cleaning and drainage.
S-Grip matting can be used in suitable covered walkways and utility areas requiring flexible, cut-to-length floor coverage with an open drainage structure.
Swimming Pools
Restrooms
Kitchens
Sauna Rooms
Feature |
S-Grip Mat |
V-Tile Mat |
X-Grip Tile |
|---|---|---|---|
Model |
FCM111 |
FCM501 |
FCM402 |
Format |
Flexible Roll |
Interlocking Tile |
Interlocking Tile |
Structure |
S-Shaped Open Grid |
Perforated Raised Tile |
Open-Grid PVC Tile |
Standard Size |
1.2–1.8 m × 15 m |
30 × 30 cm |
30 × 45 cm |
Main Advantage |
Cut-to-Length Coverage |
Modular Poolside Flooring |
Modular Entrance Drainage |

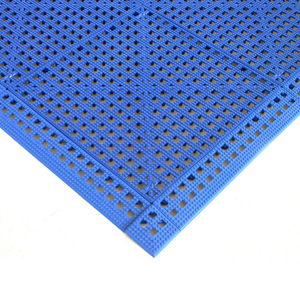

Choose S-Grip for flexible PVC drainage rolls that can be cut to length. For modular flooring projects, explore our V-Tile Swimming Pool Mat or X-Grip Entrance Matting Tiles.
FXH has over 20 years of experience in PVC mat manufacturing, supplying commercial and industrial flooring products to international distributors and project buyers.
For S-Grip PVC drainage mats, we support wholesale production in different roll widths, thicknesses and colors. Our factory also offers customized roll specifications, export packaging and quality inspection according to order requirements.
Each production batch is checked for dimensions, thickness, color consistency, surface structure and overall appearance before shipment.
Why global clients trust FXH:
Factory-direct supply for competitive pricing
Large production capacity and fast lead times
Strict quality control for each roll and batch
Custom color, size, and logo options available
Export-ready packaging for secure international shipment
Each S-Grip PVC Drainage Mat is carefully rolled and wrapped with protective film to prevent dust and deformation.
For bulk orders, mats are packed in export-standard cartons or on pallets, ensuring safe and damage-free delivery.
Lead Time: 7–15 days depending on order quantity and customization.
1. What sizes are available?
We offer rolls of 1.2×15 m, 1.6×15 m, and 1.8×15 m. Custom sizes are also available based on your needs.
2. Can the S-Grip Mat be used in oily or greasy areas?
Suitability for oily or greasy environments depends on the specific substances, exposure conditions and required performance. Please share your application details so we can review material compatibility and any necessary testing.
3. Is the mat easy to clean?
Absolutely. The open S-structure allows quick rinsing. Simply hose down with water or mild detergent.
4. Can I customize the color or size?
Yes. FXH supports customized roll widths, lengths, thicknesses and colors according to production requirements. The standard MOQ is 1,000 m².
5. What is the minimum order quantity (MOQ)?
Our MOQ is 1000 square meters for production.
6: What is the difference between S-Grip drainage rolls and modular drainage tiles?
S-Grip is supplied as flexible PVC roll material that can be cut to length. Modular drainage tiles use individual interlocking pieces, allowing different floor layouts and easier replacement of individual sections.
