Modulor P-Grip Entrance Matting Tiles

Model FCM401 is a hybrid modular entrance tile that combines a Houston-style textile insert with a PVC drainage base. Each 30 × 45 cm tile can be connected with adjacent modules to build entrance areas of different sizes, while damaged or heavily worn modules can be replaced individually rather than replacing the entire matting system.

The modular structure is intended for busy commercial entrances where pedestrians, wheelchairs, luggage trolleys and shopping carts may pass across the matting system. Individual modules can be installed, removed or replaced according to the entrance layout and maintenance requirements.

What Makes the P-Grip Structure Different?

The P-Grip tile uses two functional layers in one modular system. A textile carpet insert on the walking surface helps collect fine dirt and moisture, while the open PVC base supports drainage and allows loose debris to move below the surface.

This combination makes P-Grip different from open-grid PVC tiles that focus mainly on drainage and brush-style entrance tiles that focus mainly on scraping coarse dirt.

Modulor P-Grip Entrance Matting Tile Key Features

1. Textile Insert for Dirt & Moisture Collection

   The ribbed carpet insert helps collect fine dirt and everyday moisture from footwear at commercial entrances. The textile component provides a different cleaning function from an all-PVC open-grid mat.

2. Open PVC Base for Drainage

   Open spaces within the PVC base allow water and loose debris to move below the walking surface, helping keep the upper textile area clearer during entrance use. The underlying floor area should still be cleaned periodically as part of routine maintenance.

3. Heavy-Duty Durability

   Built to withstand high footfall and rolling loads, the P-Grip Mat can support up to 50 tons/m². It is suitable for use with wheelchairs, shopping trolleys, luggage carts, and cleaning equipment.

4. Anti-Slip Safety Performance

   The combination of a textured ribbed top and secure interlocking modules provides excellent grip and stability, reducing slip hazards in busy entrance areas.

5. Customizable Colors

   Available in multiple color combinations such as black-black, grey-grey, grey-black, and grey-brown.

6. Easy Installation & Maintenance

   The modular design allows fast installation and replacement. Individual tiles can be lifted, cleaned, or replaced without disturbing the entire system, saving maintenance time and costs.

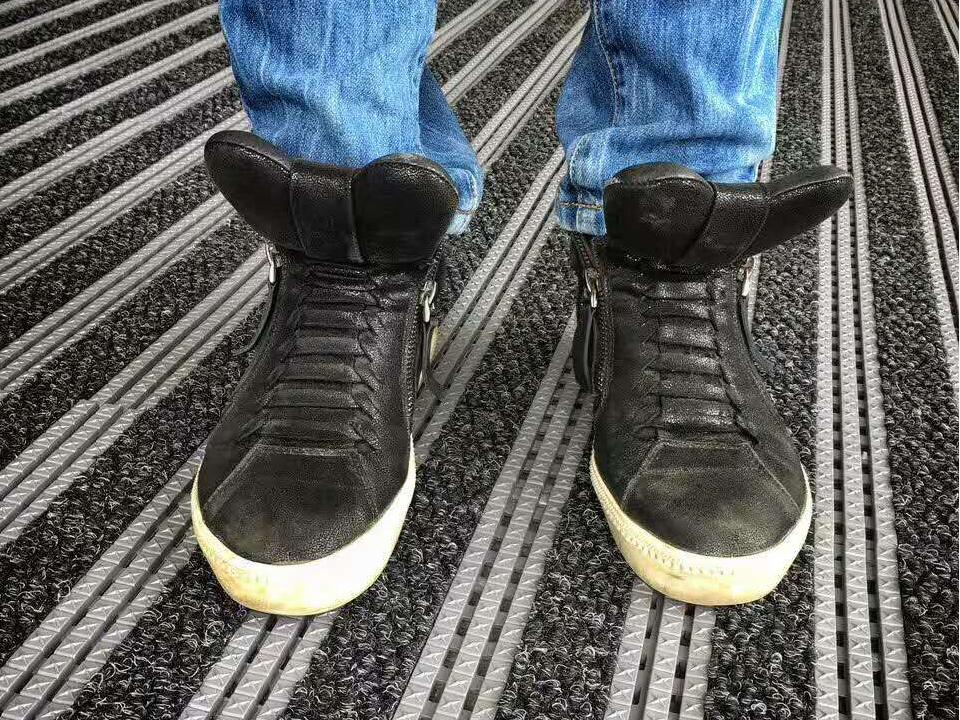

Superior Dirt & Moisture Removal

Efficient Drainage & Open Structure

Heavy-Duty Durability

Anti-Slip Safety Performance

Modulor P-Grip Entrance Matting Tile Technical Specifications

Which Modular Entrance Mat Should You Choose?

Applications

The Modulor P-Grip Entrance Matting Tile is designed for demanding commercial and public environments, including:

• Commercial Entrances: Hotels, shopping malls, retail stores, office buildings, and banks.

• Transportation Hubs: Airports, train stations, subway stations, and bus terminals.

• Healthcare & Public Buildings – Suitable for entrance areas where modular maintenance and replaceable tiles are useful.

• Educational Institutions: Schools, universities, and libraries.

• Industrial & Logistic Centers: Factories, warehouses, and distribution hubs.

By efficiently trapping dirt and moisture at the entrance, the mat not only reduces cleaning costs but also prolongs the lifespan of interior flooring.

For more entrance flooring systems, explore our Commercial Entrance Mat Solutions.

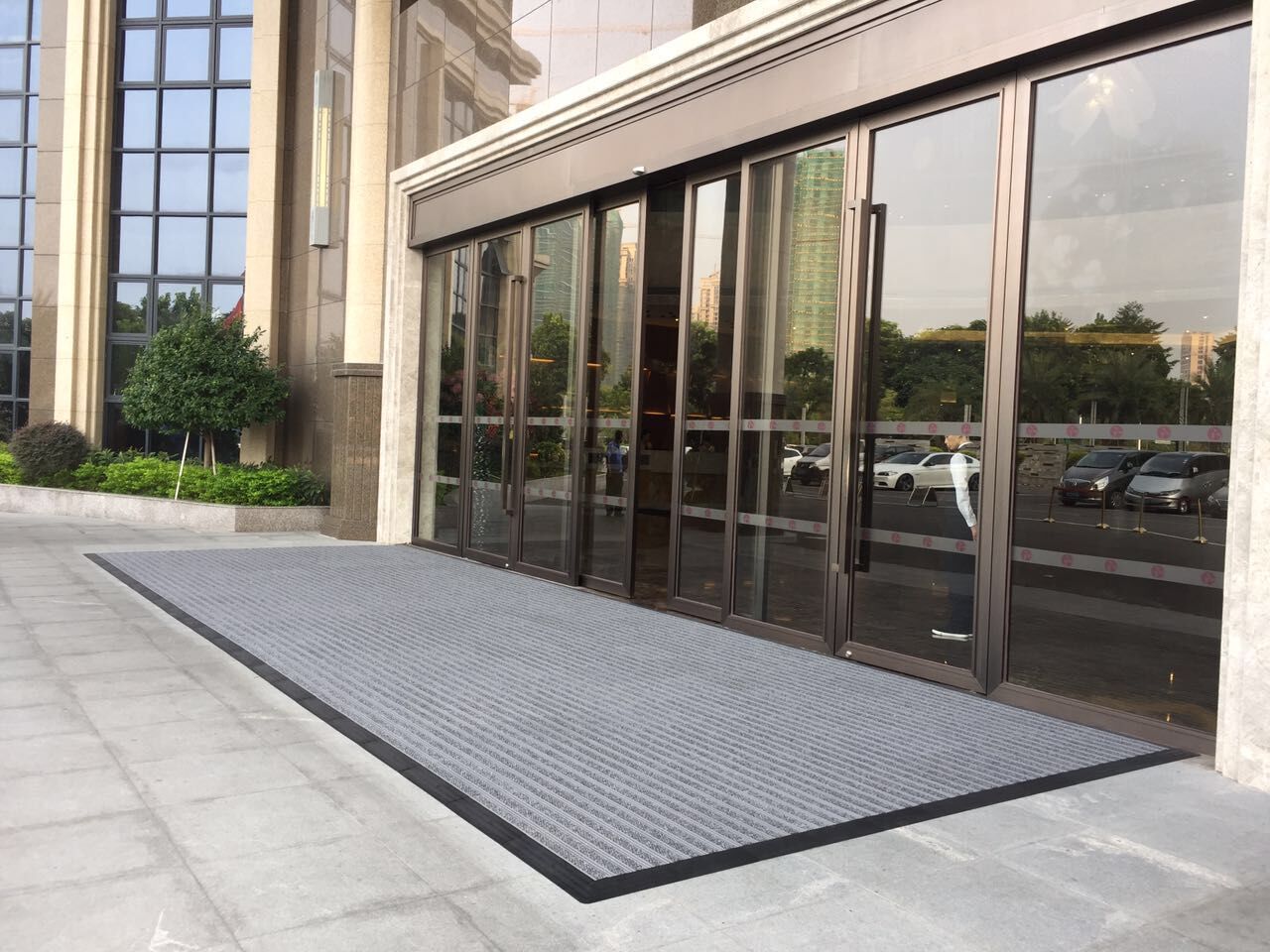

Commercial Entrances

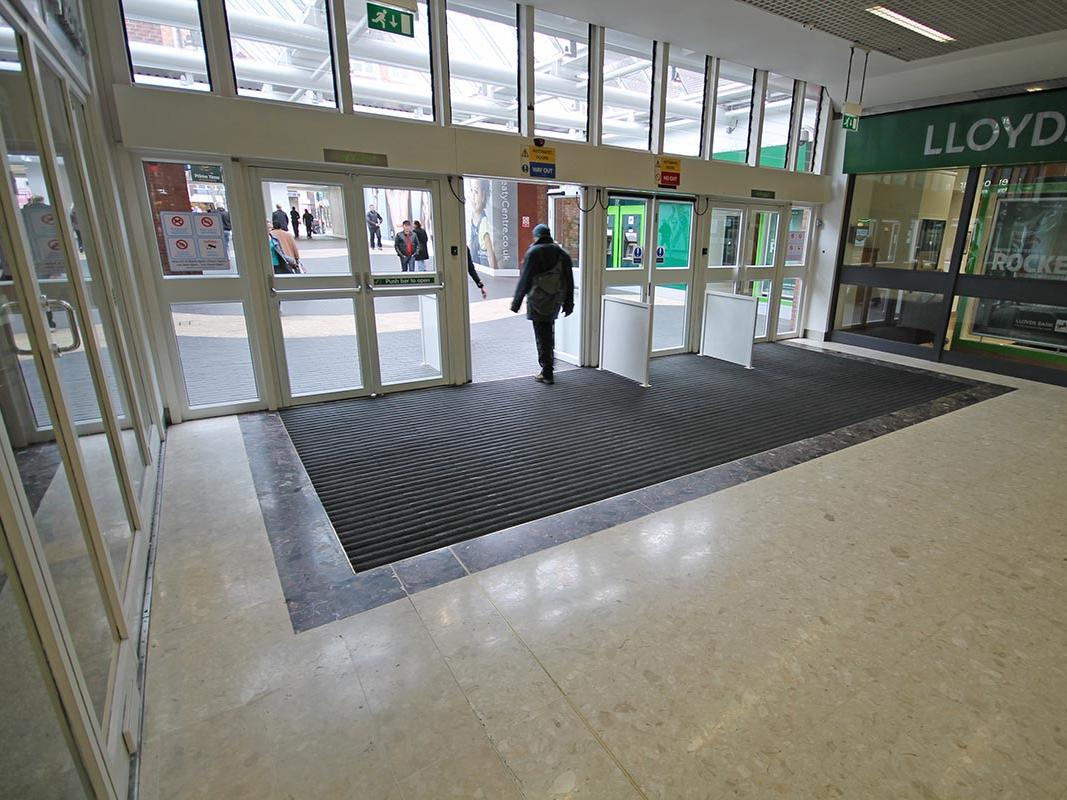

Transportation Hubs

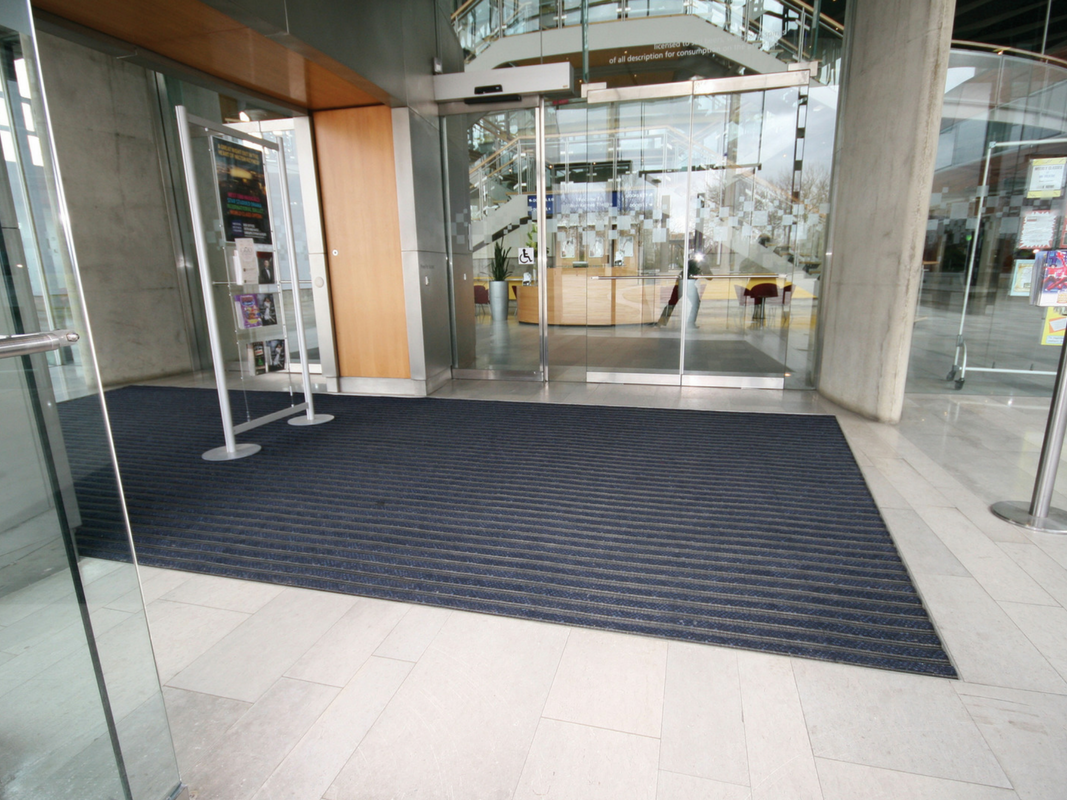

Educational Institutions

Industrial & Logistic Centers

Factory Advantages

1. Stable Daily Production Capacity – 500㎡

   Our factory is equipped with advanced production lines, ensuring stable and timely supply.

2. PVC Material & Production Control

   PVC base weight, tile dimensions, surface insert condition and finished module quality are checked according to production specifications.

3. Project-Based Production

   Production can be scheduled according to project size, color combination and packaging requirements, with a daily capacity of approximately 500 m².

4. Customization Available

   We can customize colors, sizes, weights, and branding to meet specific client requirements, offering tailored solutions for different projects.

Stable Daily Production Capacity

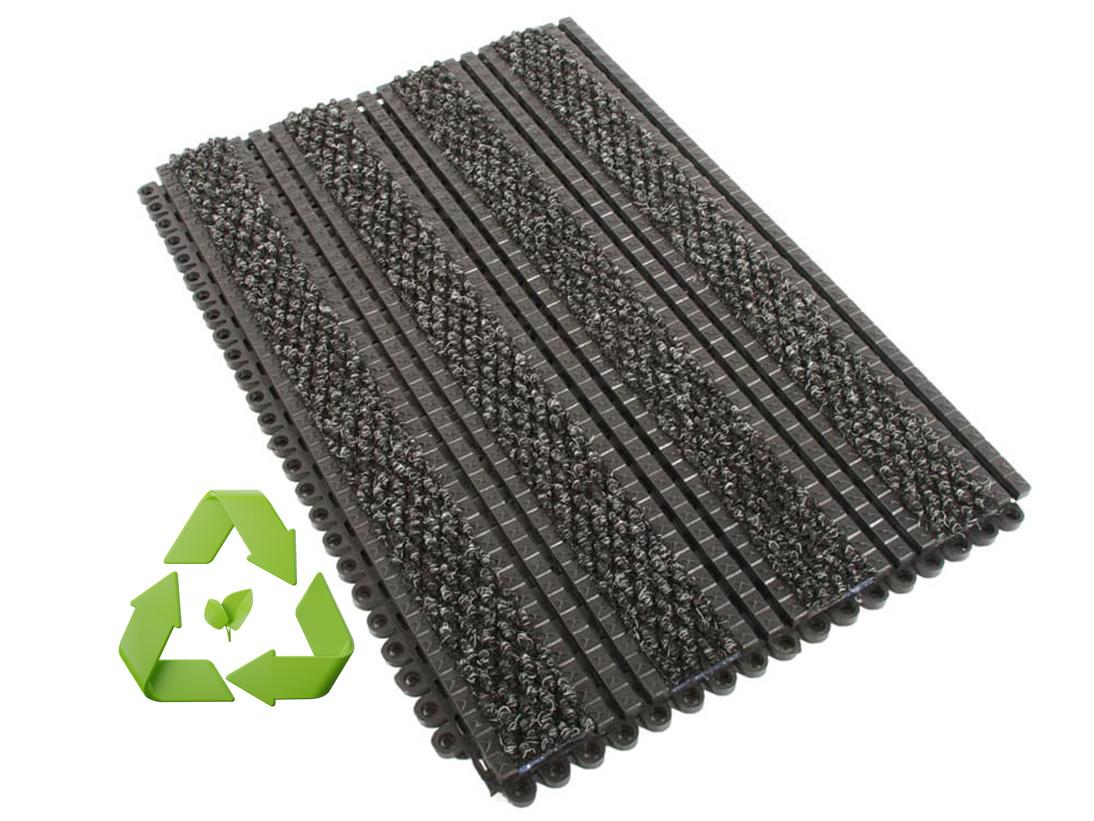

Eco-Friendly PVC Raw Materials

Made-to-Order, No Long-Term Inventory

Customization Available

FAQ – Frequently Asked Questions about P-Grip Mat

1. What is the main purpose of the P-Grip Mat?

The P-Grip Mat is designed as a modular entrance matting system to effectively remove dirt and moisture from footwear. It helps reduce indoor cleaning costs, improves floor safety, and protects interior flooring from wear and tear.

2.Where can the P-Grip Entrance Matting Tile be used?

This mat is suitable for high-traffic areas such as hotels, shopping malls, airports, office buildings, hospitals, schools, and industrial facilities. Its heavy-duty structure allows it to withstand rolling loads like shopping carts, luggage trolleys, and wheelchairs.

3. How durable is the Modulor P-Grip Entrance Matting Tile?

The mat is highly durable, capable of supporting up to 50 tons per square meter. The PVC base is resistant to cracking and wear, while the ribbed textile surface maintains its cleaning efficiency even under constant heavy foot traffic.

4. Can the Modulor P-Grip Entrance Matting Tile be customized?

Absolutely. We provide customization options in color, size, weight, and branding. You can even add a company logo to the mat to enhance your corporate image.

5. How do I install the Modulor P-Grip Entrance Matting Tile?

The mat uses a modular interlocking tile system. Each tile measures 30 × 45 cm and can be easily connected to form any required size. Installation is quick, and no special tools are needed.

6. How do I clean and maintain the Modulor P-Grip Entrance Matting Tile?

Maintenance is simple. You can lift individual tiles for cleaning, wash them with water or vacuum the surface. The open-grid structure ensures dirt and water pass through easily, preventing buildup.

7. What colors are available?

The standard color combinations include black-black, grey-grey, grey-black, and grey-brown. Other colors can be produced upon request for larger orders.

8.Can individual P-Grip tiles be replaced without removing the entire mat?

Yes. The 30 × 45 cm modular construction allows individual sections to be removed for cleaning or replacement. This is useful for commercial entrances where specific high-wear areas may require maintenance before the rest of the matting system.

9.What is the difference between P-Grip and X-Grip entrance tiles?

P-Grip combines a textile carpet insert with an open PVC base to provide both dirt and moisture collection. X-Grip uses a more open PVC structure and is better suited to applications where drainage is the main priority.

Conclusion

The P-Grip Modular Entrance Matting Tile combines a textile carpet insert with an open-grid PVC base in a 30 × 45 cm replaceable module. Its 14 mm construction is designed for commercial entrance projects that require dirt and moisture collection together with modular installation and easy maintenance.

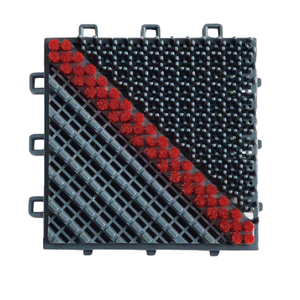

For applications where drainage or coarse dirt scraping is the main priority, FXH also offers X-Grip and 3-in-1 Brush modular entrance mat systems.
